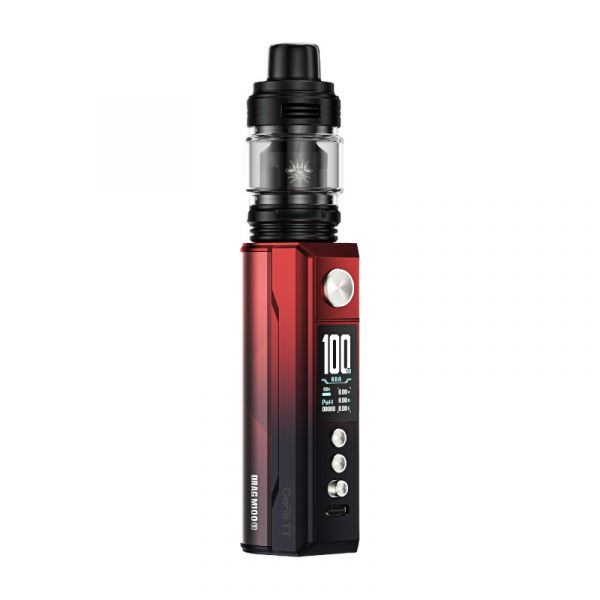

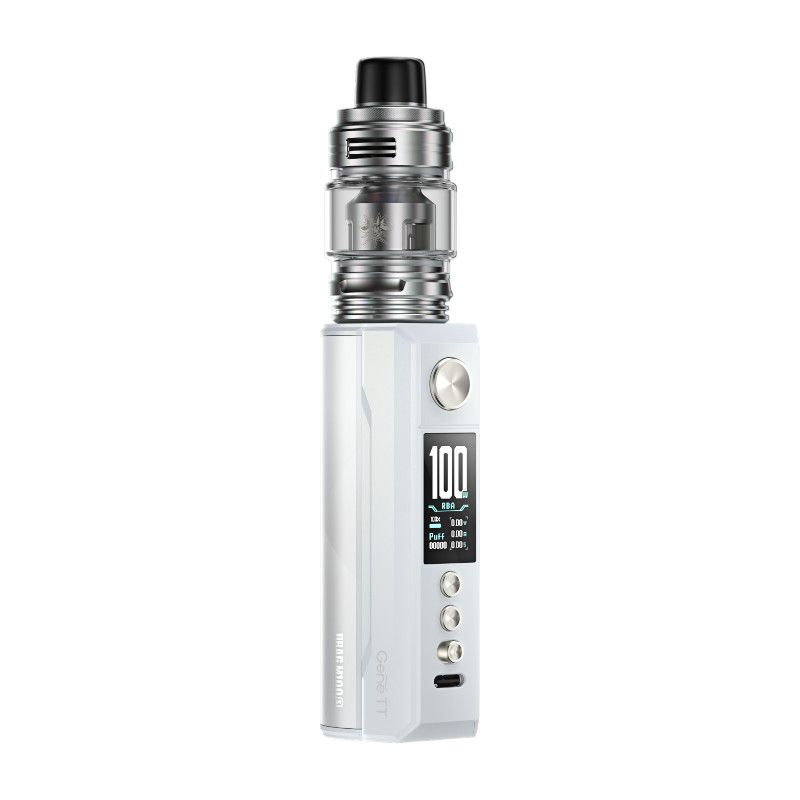

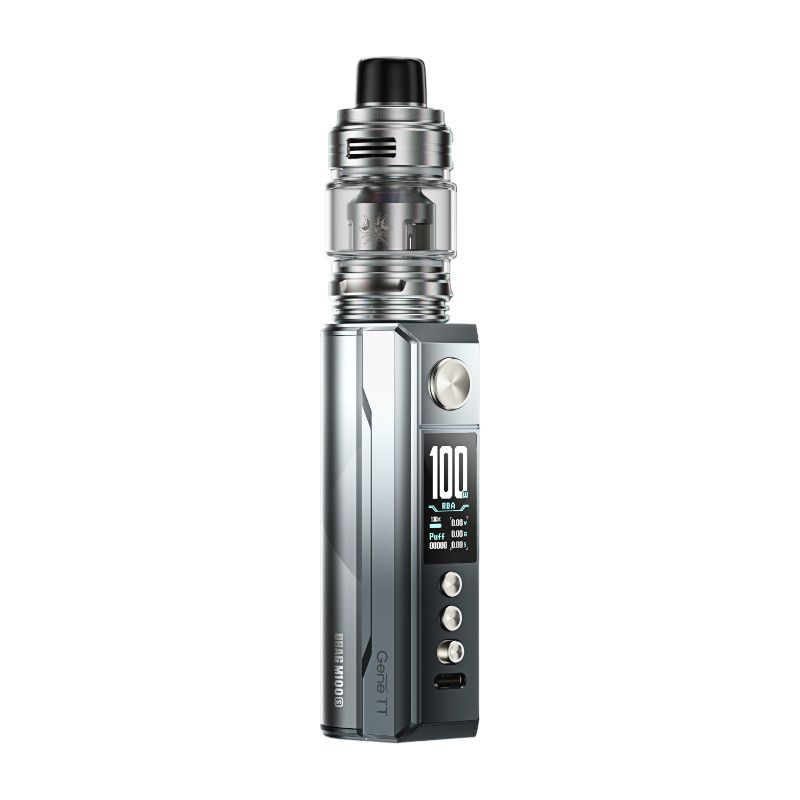

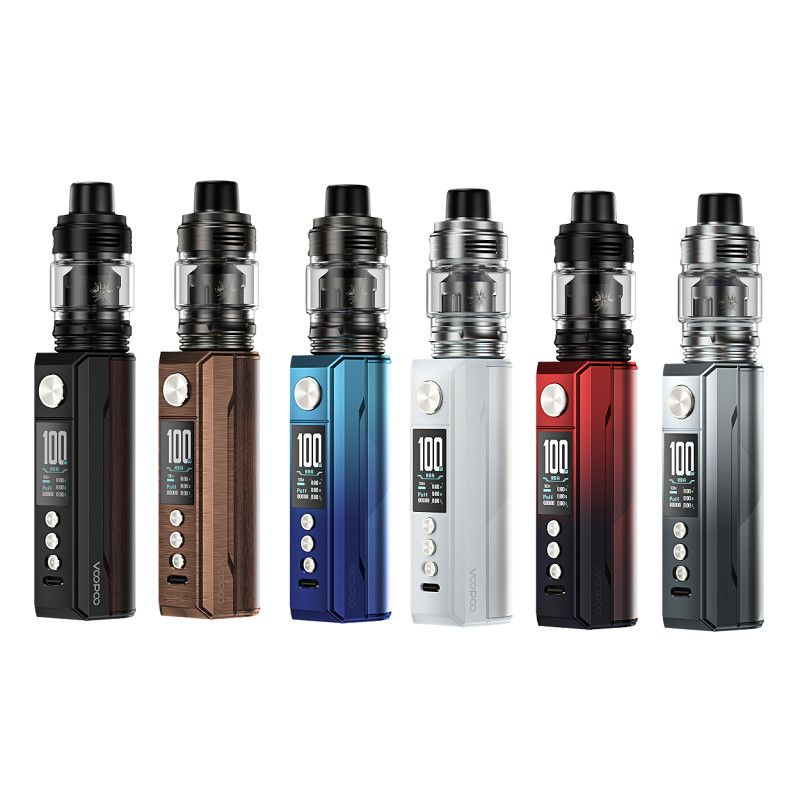

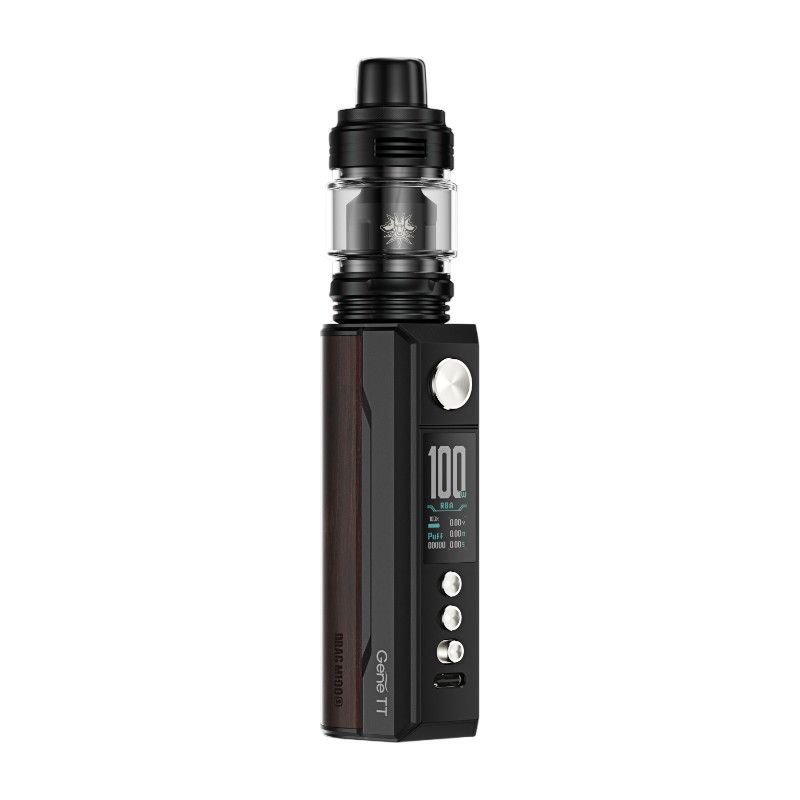

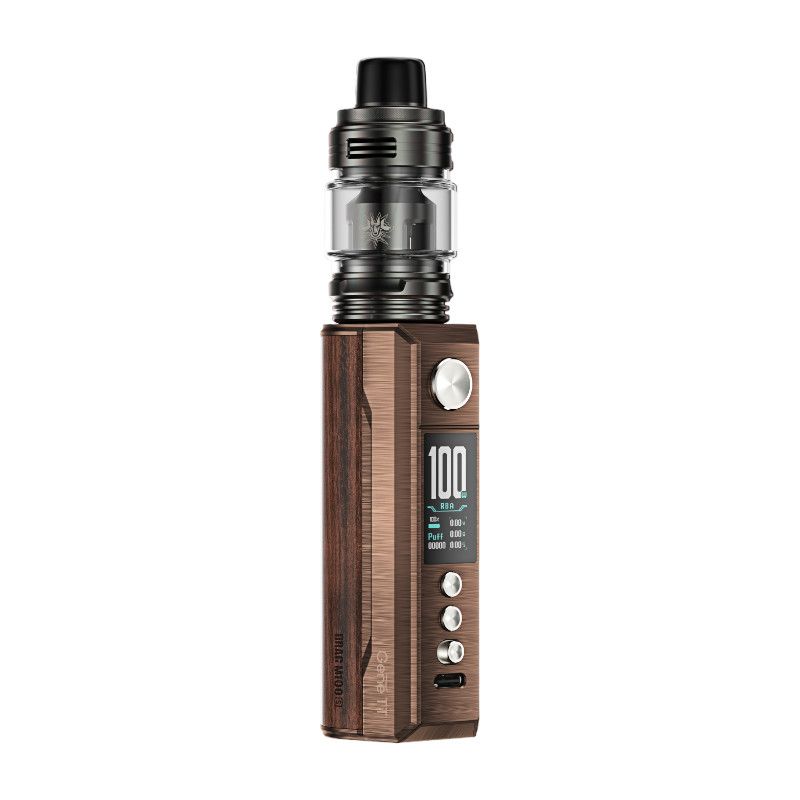

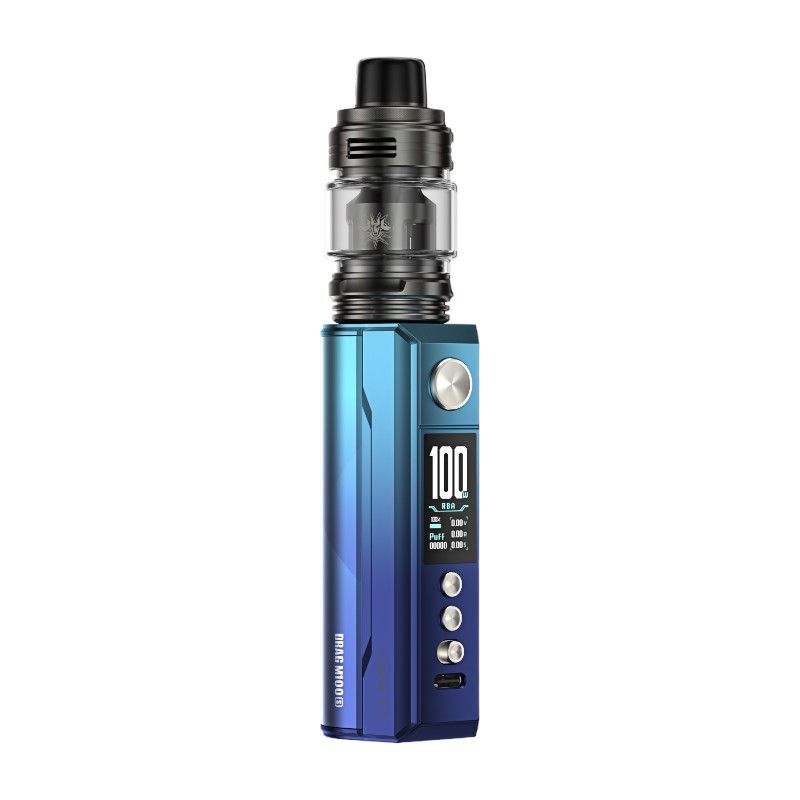

VooPoo DRAG M100S + Uforce L Kit

The Voopoo Drag M100S is a new addition to the ever-growing Drag range. This handy mod is further enhanced by the Uforce L atomizer with a 5.5ml capacity, loose DL coating and reliable, great tasting PNP coil heads. The kit is suitable for both advanced users and complete beginners.

The mod is heavily based on the Drag 4 and is essentially just a one-battery version of it. Again, you can look forward to a modern design and lots of great features. The body of the mod is made of aluminum and zinc alloys, processed into a tube-like shape with very compact dimensions. The layout and appearance is

The user panel features a spacious coil button, a clear display as well as three smaller buttons for setting and moving around the menu. Below these, there is only the USB-C charging port, through which the inserted battery can be charged quickly and easily. The battery itself is inserted through the bottom door. You can use a 21700 or 18650 battery (using an adapter).

The user interface of the display is similar to that of most devices in the Drag series. Thus, the display shows the currently selected power, set mode, resistance and voltage values in large digits. There is also a battery status indicator shown as an icon and as a percentage for better overview. A coating counter and coating length timer are also standard on the Voopoo. A new feature, however, is a pleasing animation during charging.

The device is equipped with the powerful Gene TT 2.0 chip, providing up to 100W of power, rapid ignition technology and a total of three ignition modes. SMART mode determines the best possible performance given the coil head used, RBA mode allows for customization and ECO mode acts as a power saving mode, extending battery life by up to 10%. This mode will also automatically offer you when the battery capacity drops to 40% to find the best comfort.

The choice of the atomizer fell on the Voopoo Uforce-L. It is a premium crafted atomizer with an attention to detail, so every element of it brings benefits. You can therefore rely on a thoroughly delineated taste, a smooth coating without squeaking and improved heat dissipation.

Design-wise, it's a unique piece, brimming with elegance for its combination of stainless steel and pyrex glass. In addition, the underside is treated in the form of a heat sink for better heat dissipation from the coiling head. With a flat glass, the tank can hold up to 4ml of e-liquid, but offers an increase thanks to the convex glass with a capacity of up to 5.5ml.

The atomiser's strengths are the three-sided air delivery system, each side of which is further divided into three elongated lines and can also be regulated by rotation. This distribution brings the air evenly from top to bottom to the ignition, making the heating more efficient, the coating fully smooth and the vapour sufficiently dense. The resulting flavour rendering is thus at the highest level.

The Uforce-L Atomizer uses the popular PnP coil heads for its operation, but the best results are achieved with the PnP-TW15 and PnP-TW20 types (included), containing dual mesh honeycomb coils (Dual-In-One technology). Their heating capability is therefore both fast and even.

However, it is also compatible with other PnP series heads, therefore giving you a plethora of quality designs to choose from, as well as the use of RBA heads for custom coil twisting. Due to the use of coil heads, its operation and replacement of the coil is very simple, making the atomizer suitable even for beginners.

Parameters
Mode dimensions: 90mm x 36mm x 30mm
Tank dimensions: 58mm x 25.5mm
Volume: 5.5ml
Adjustable power: 5W-100W
Output voltage: max 8.5V
Adjustable temperature: 100°C-315°C / 200°F-600°F
Supported Modes: Smart / VW / ECO / TC-Ni200, Ti, SS316, SS430
Supported resistance: 0.05Ω-3Ω
Battery: 18650 / 21700 (at least 25A) - (not included)
Charging: USB-C port (5V/2.5A)
Thread: 510 and cushioned contact
Material: zinc alloy, pyrex, stainless steel, padauk, darkwood, AG Matte Finish

Package contents
1x VOOPOO Drag M100S mode
1x VOOPOO Uforce - L Tank 5,5ml
1x PnP-TW15 0,15Ω (55W-70W)
1x PnP-TW20 0,20Ω (40W-55W)
1x replacement glass body 5,5ml
1x adapter for 18650 battery
1x USB-C cable

Manufacturer: VooPoo
