Suicide Mods X Vaping Bogan X Orca Vape - Stubby AIO 21700 RDTA - X-Ray Edition
Sold out / Production stopped
Have we discontinued the product you're interested in? Let us know at jsme@vaporism.cz, and we will find out about the possibility of restocking.

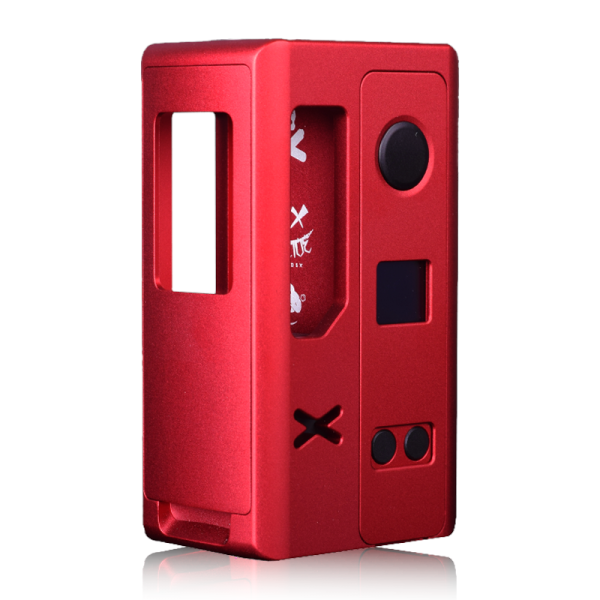

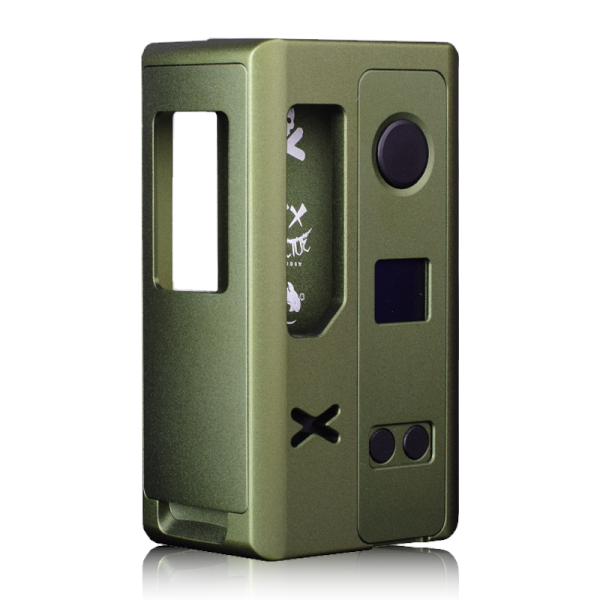

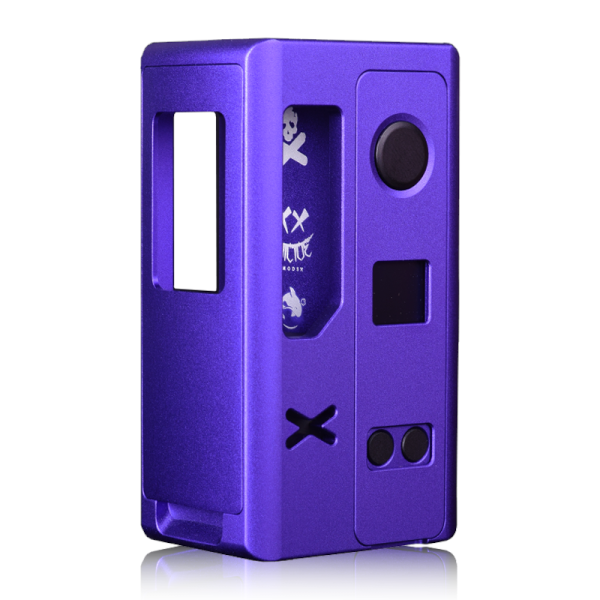

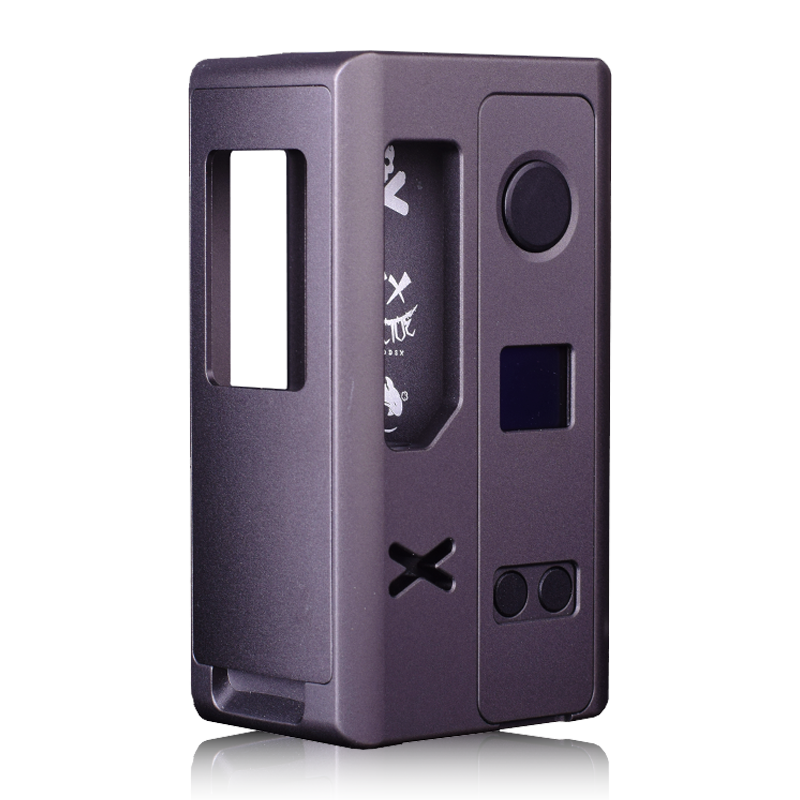

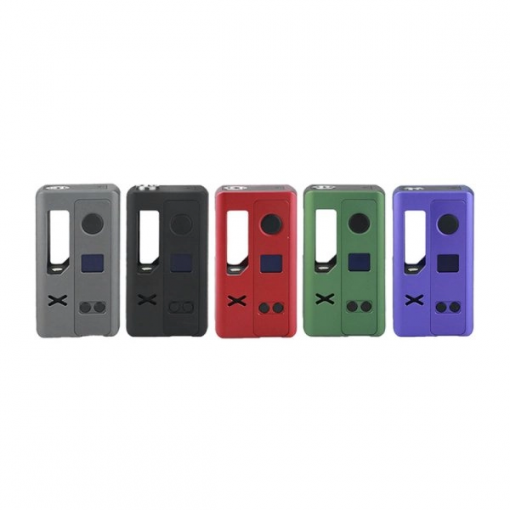

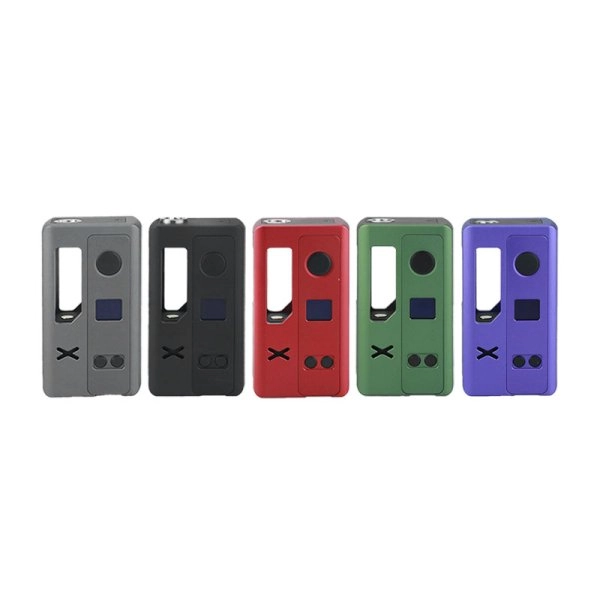

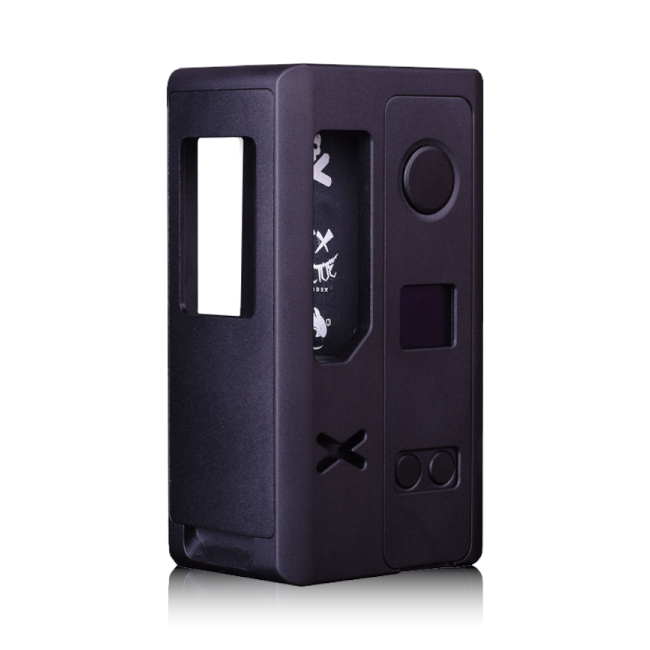

The Stubby AIO 21 is a sophisticated, single battery device supplied with the eponymous Boro RDTA. Now also in an X-Ray edition with cutouts in the body.
Similar products
Related products
In stock
6,10 €
Product classification
Product description
The joint work of Suicide Mods with famously spongy vape-youtuber Vaping Bogan and new manufacturer Orca Vape has given rise to the elegant and uniquely designed Stubby AIO 21 device with a truly unique shell RDTA atomizer. The X-Ray Edition is also enhanced with cut-outs in the panels for display, battery and especially for Boro atomiser compartment. This not only puts the atomizer on display, but also gives you a great view of the liquid level in the tank without having to remove the panel.
Underneath its sleek appearance, the Stubby AIO 21 hides a sophisticated discrete design with three removable panels. The only design features outside of the shape itself are the engraving of the device name, located at the bottom of the back, and the glow button protruding through the panel cross-section. The size of the device is pleasingly compact, ensuring a comfortable grip. The device is fitted with a replaceable Type 510 driptip, with the area surrounding the driptip being reinforced with a stainless steel plate, serving as protection against breakage when the driptip is screwed in.
Each of the removable panels conceals a separate chamber for individual pieces of equipment. Below the front panel are the controls, consisting of a large round ignition button, two small buttons and a display. High emphasis has also been placed on the display interface, so instead of flicking through power numbers, it comes with impressive scrolling. In addition, however, it does not forget all the necessary data, providing a comprehensive overview of battery status, resistance, voltage, selected mode and number of draws.
The side panel hides an unusually large hole for inserting the shell atomizer. This is primarily designed for the Stubby RDTA, abounding in the width of the Boro shell atomizer format, but with a significantly elongated length. However, a handy thread extender is included to reduce the space and make the device compatible with all Boro shell atomizers. The bottom pin is also screwable, so it can be adjusted to anchor the atomiser firmly in place.
The space under the rear panel then houses a battery slot for a single 21700 battery, equipped with a handy cogged wheel to tighten the battery into place to prevent movement. Also included for battery charging capability is a USB-C port, conveniently located on the side of the device with a rubber cap overlay.
As one of the first modes ever, the Stubby AIO 21 features a wire-free chipset, so in case of failure you can replace it yourself by simply unscrewing it. The chip can deliver a maximum power of up to 80W, but also gives you a choice of several output modes (power, Ni-Ti-SS, Bypass).
The Stubby RDTA Atomizer will surprise you from the first sight. It forms its own format, which it uses to the maximum. The tank of the atomizer delivers a volume of up to 8.5ml for e-liquid, which is rightly unparalleled in the category of shell atomizers. For filling with e-liquid, it is equipped with an opening on the front, fitted with a traditional silicone cap. Due to the RDTA design, the tank is located under the build deck and the e-liquid supply to the base is thus provided by four supply steel wicks.
The coil deck is post mounted, consisting of two opposing posts with four screws to accommodate a single coil. Two smaller e-liquid channels are then positioned opposite each other on the sides, through which the ends of the supply cables pass. The outlet of the airflow hole is located between the posts directly below the coil location and, due to the included thread, airflow inserts of different diameters can be screwed into it to adjust the resulting stiffness of the draw.
Parameters
Dimensions: 77mm x 43mm x 30mm
Output power range: 5W - 80W
Input voltage range: 3.2V - 4.2V
Output voltage range: 0.8V - 8V
Minimum supported resistance: 0.08Ω
Tank capacity: 8.5ml
Battery: 1x 21700 (not included)
Charging: USB-C
Materials used: PCTG, stainless steel, aluminum alloy

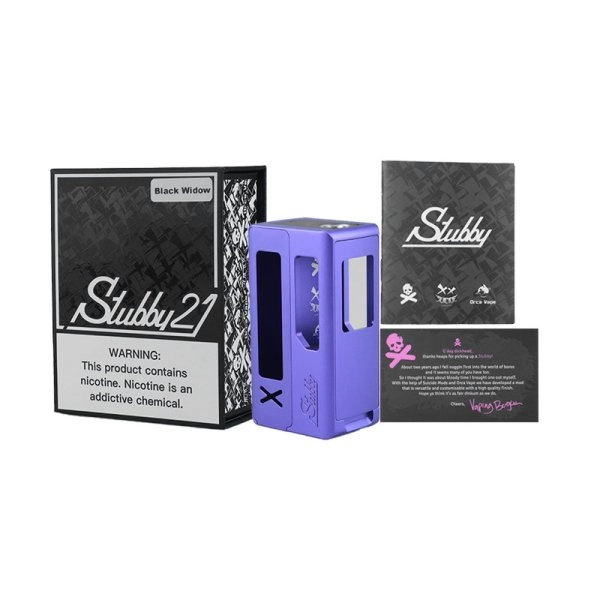

Package contents
1x Stubby AIO 21 device
1x Stubby RDTA shell atomizer
1x 510 Driptip
1x Adapter for Boro shell atomizers
3x Airflow insert (4mm, 3mm, 2mm)
1x USB-C charging cable
1x Spare parts kit
1x User Manual
Underneath its sleek appearance, the Stubby AIO 21 hides a sophisticated discrete design with three removable panels. The only design features outside of the shape itself are the engraving of the device name, located at the bottom of the back, and the glow button protruding through the panel cross-section. The size of the device is pleasingly compact, ensuring a comfortable grip. The device is fitted with a replaceable Type 510 driptip, with the area surrounding the driptip being reinforced with a stainless steel plate, serving as protection against breakage when the driptip is screwed in.
Each of the removable panels conceals a separate chamber for individual pieces of equipment. Below the front panel are the controls, consisting of a large round ignition button, two small buttons and a display. High emphasis has also been placed on the display interface, so instead of flicking through power numbers, it comes with impressive scrolling. In addition, however, it does not forget all the necessary data, providing a comprehensive overview of battery status, resistance, voltage, selected mode and number of draws.
The side panel hides an unusually large hole for inserting the shell atomizer. This is primarily designed for the Stubby RDTA, abounding in the width of the Boro shell atomizer format, but with a significantly elongated length. However, a handy thread extender is included to reduce the space and make the device compatible with all Boro shell atomizers. The bottom pin is also screwable, so it can be adjusted to anchor the atomiser firmly in place.
The space under the rear panel then houses a battery slot for a single 21700 battery, equipped with a handy cogged wheel to tighten the battery into place to prevent movement. Also included for battery charging capability is a USB-C port, conveniently located on the side of the device with a rubber cap overlay.
As one of the first modes ever, the Stubby AIO 21 features a wire-free chipset, so in case of failure you can replace it yourself by simply unscrewing it. The chip can deliver a maximum power of up to 80W, but also gives you a choice of several output modes (power, Ni-Ti-SS, Bypass).
The Stubby RDTA Atomizer will surprise you from the first sight. It forms its own format, which it uses to the maximum. The tank of the atomizer delivers a volume of up to 8.5ml for e-liquid, which is rightly unparalleled in the category of shell atomizers. For filling with e-liquid, it is equipped with an opening on the front, fitted with a traditional silicone cap. Due to the RDTA design, the tank is located under the build deck and the e-liquid supply to the base is thus provided by four supply steel wicks.
The coil deck is post mounted, consisting of two opposing posts with four screws to accommodate a single coil. Two smaller e-liquid channels are then positioned opposite each other on the sides, through which the ends of the supply cables pass. The outlet of the airflow hole is located between the posts directly below the coil location and, due to the included thread, airflow inserts of different diameters can be screwed into it to adjust the resulting stiffness of the draw.
Parameters
Dimensions: 77mm x 43mm x 30mm
Output power range: 5W - 80W
Input voltage range: 3.2V - 4.2V
Output voltage range: 0.8V - 8V
Minimum supported resistance: 0.08Ω
Tank capacity: 8.5ml
Battery: 1x 21700 (not included)
Charging: USB-C
Materials used: PCTG, stainless steel, aluminum alloy
Package contents
1x Stubby AIO 21 device
1x Stubby RDTA shell atomizer
1x 510 Driptip
1x Adapter for Boro shell atomizers
3x Airflow insert (4mm, 3mm, 2mm)
1x USB-C charging cable
1x Spare parts kit
1x User Manual
