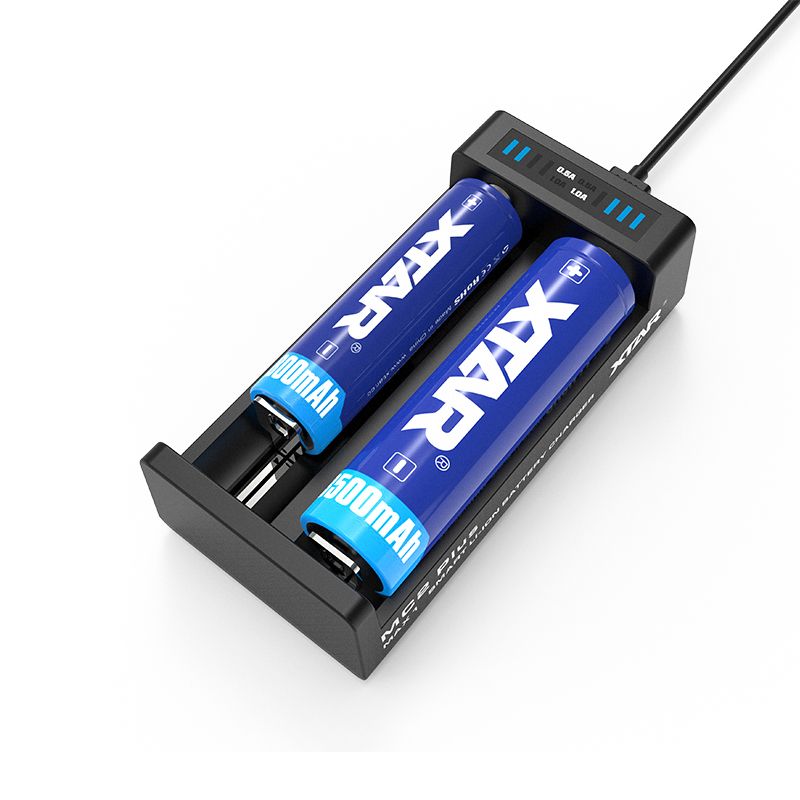

Charger for batteries Li-ion 18650 Xtar MC2 PLUS

• Processor-controlled three-stage charging process TC/CC/CV
• Automatic charging current 0, 5A/1A
• Two independent charging channels
• Powered by any micro USB charger (min. 1A)
• Compact size-Easy to carry
• Reactivation function of deeply discharged cells
• Protection: Short-circuit, thermal, reverse polarity

Xtar is a renowned manufacturer of high quality Li-ion rechargeable battery chargers, flashlights and lithium batteries. Xtar products are sold in more than 120 countries, including mines IN the USA, Germany, Japan and Russia. For the production of Chargers Xtar uses the highest quality materials-from the plastic casing to the efficient electronics. All Xtar Chargers HAVE CE certification required on European markets.

In a small enclosure, a fully professional processor loader with a three-stage charging process TC/CC/CVis concealed. It loads 3.6/3.7 v Li-ion cells with any capacity in sizes 10440, 14500, 14650, 16340, 17500, 17670, 18350, 18500, 18650, 18700, 20700, 21700, 22650, 25500, 26650.

What Is THE TC/CC/CV charging method? It is a three-step process of loading Li-ion cells to keep the cell in good condition by charging the right current at each stage and completing the charging process at the right moment.
The various stages of the TC/CC/CV process are:
• TC phase: Cells discharged below 2, 9V are ' awake ' to lower currents.
• CC phase: When 2, 9V is reached, the cell is loaded with a constant current of 0, 5A (rechargeable batteries up to 54mm) or 1A (rechargeable batteries above 54mm).
• CV phase: When the cell is already nearly charged, the charger switches to a decreasing current charge until it reaches a voltage of 4, 2V on the cell. After reaching 4, 2V the charging process is complete-the battery is fully charged.

Batteries with a voltage of 4, 1V or higher are treated by the charger as charged. To recharge such a full battery, please insert it into the charger before powering it in. When left in the charger, the charged batteries will be subjected to a natural self-discharge process. Charging will resume when the battery voltage drops below 4, 1V.

The Xtar MC2 Plus has a reactivation function for deep-discharged cells and cells with a Voltage Of 0v. Many chargers on the market are not able to charge such batteries. Here with the help comes the charger Xtar MC2, which in many cases allows you to ' resave ' such cells. Just insert a deeply discharged battery into the MC2 charger, as with normal charging, the charger detects the unloaded link and attempts to reactivate it. Attention! Cells unloaded below a certain level are irreversible and reactivated may not be possible. Avoid too deep discharge of Li-ion batteries-this can lead to a significant reduction in their durability and capacity or to their total malfunction.

Chargers from other manufacturers can significantly increase the temperature of the cells being charged during charging. Excessive heating of the cells can cause them to wear more quickly. When designing a MC2 Plus loader, Xtar went one step further from the competition, solving this problem easily: the power from an external power supply was applied. This ensures that the temperature charged in MC2 Plus will increase by up to 15 degrees.

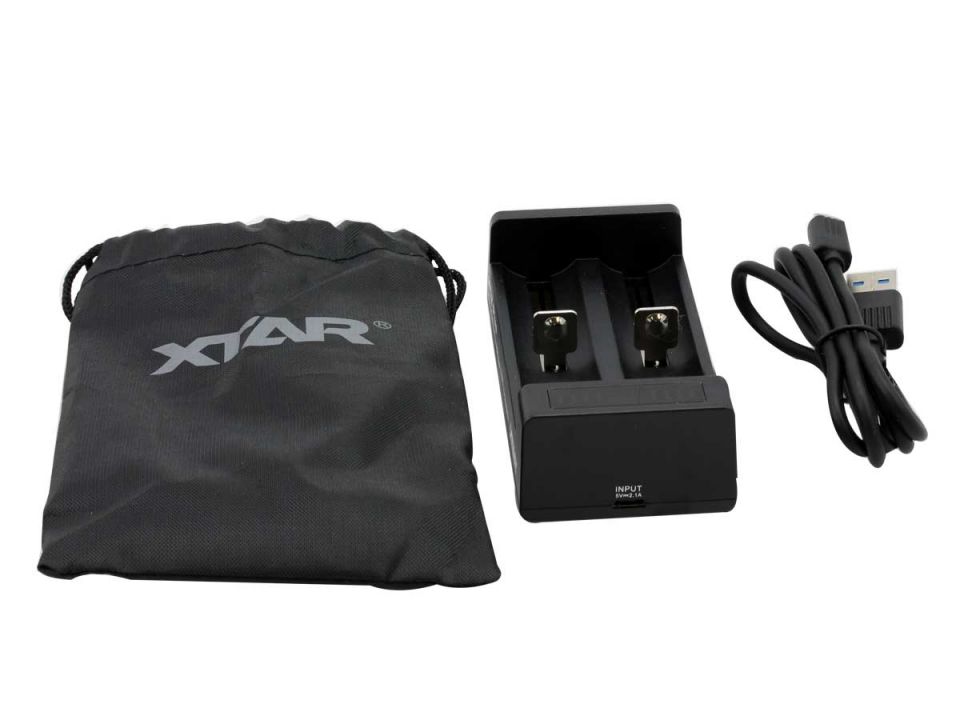

Supplied with the Xtar MC2 Plus charger, we get a micro USB cable and a cover for securing the charger for transport. The power supply is not Included In the set. Any charger with micro US cable is enough to power the charger
