Aspire Raga AIO Kit

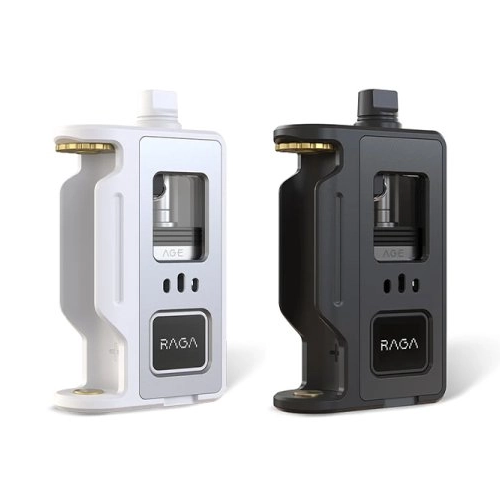

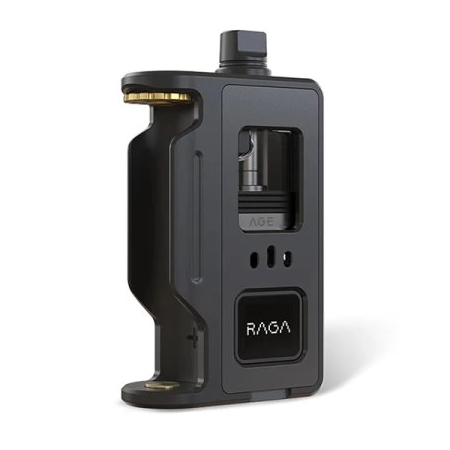

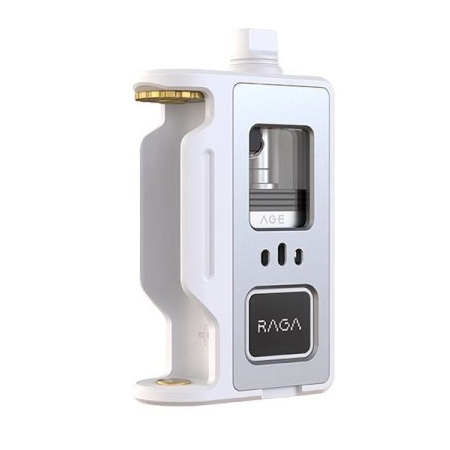

Although we have associated the manufacturer Aspire with more mainstream devices, from time to time it likes to come out with something more unconventional. As in past cases, the result is worth it! The Raga AIO kit is a great Boro device, which is followed straight from the package by the Age RDA single-coil Boro tank. The device has a nice design, a slot for 18650 battery (not included) and several neat features.

The dimensions of the device are: 88.4 x 50.2 x 23.5 mm, making it one of the smaller Boro AIO devices. The device weighs 129g. The design sticks to a more restrained, minimalist, angular look, whose captivating appeal is further enhanced by the combination of aluminium panels and a nylon body, which is extra strong, heat resistant and comfortable to grip with the addition of ceramic.

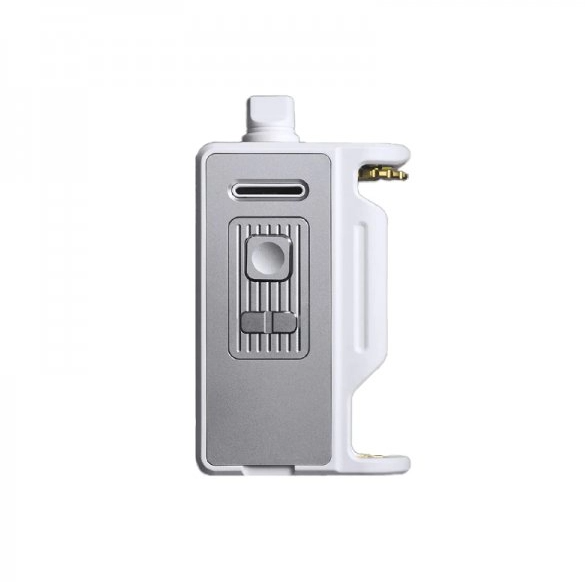

On the front you'll find a huge cut-out for viewing the liquid in the Boro tank and a 0.66" OLED display. The back then features a fire and two control buttons. On all sides (except for the battery slot) you will find openings in the panels for air access to the Boro tank. The entire device is constructed for easy disassembly and the contacts are plated with 24k gold.

The integrated ROH chipset is designed for ease of use while offering complete customization options. The device will provide up to 75W of power with only a millisecond response. It offers seven output modes: Watt (Power), Voltage, Bypass, CPS (Custom Power Setting) and temperature modes for titanium, nickel and stainless steel (TC-NI / TC-TI / TC-SS). Over Time, Open Circuit, Short Circuit, Overheat, Low Voltage and Low Resistance safeties are also available.

Aspire AGE RBA is included in the package. It is a Boro tank with a single-coil, postless build deck. The fitting is very simple. The coil settles diagonally, but the grooves for cotton, which can also be used to seat the matting mandrel, will help to find the exact position of the coil. The volume of the atomiser is 4.5ml and it fills easily, from the front, through the silicone cap.

Airflow access is from bottom and adjustable by both a rotary ring with four settings, as well as by AFC reducers. In the package you will find sizes 2, 3 (pre-installed) and 4mm.

For the possibility of build preparations of the atomizer directly in the AIO device, the manufacturer offers an extended 510 threaded reduction in the package. Simply screw the reduction in place of the mouthpiece and you can continue spinning the atomizer undisturbed. In case of using another atomizer, the device also has a aretation screw under the mouthpiece, which adjusts any minor intolerances and thus better fix your Boro tank in the device.

The device is powered by one external 18650 battery (not included). We recommend choosing high quality cells and due to the lack of a cover panel, check the condition of their wrap frequently.

Parameters:
Raga AIO
Dimensions: 88.4 x 50.2 x 23.5 mm
Weight: 129 g
Power: 5-75 W
Voltage: 0.5-8.4 V
Resistance: 0.08-3.5 Ω
Output Modes: Watt, Voltage, Bypass, CPS (Custom Power Setting), TC-NI/TC-TI/TC-SS
Temperature range for TC: 100-315℃
USB-C port - housed on PCB, for firmware update only
Atomizer Compatibility: Boro
Battery: 1x 18650 (not included)

AGE RBA
Volume: 4.5 ml
Single-spiral, postless base
Airflow control with rotary ring and supplied AFC reducers

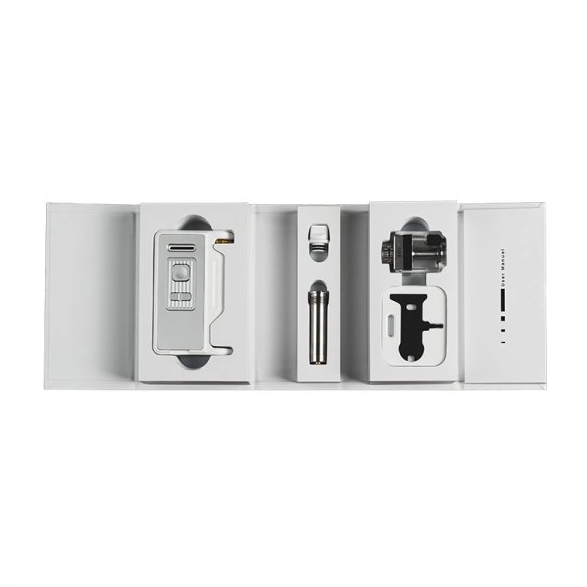

Package Contents:
1x RAGA AIO
1x AGE RBA
3x AFC reducers (2mm, 3mm - pre-installed, 4mm)
1x Mouthpiece
1x Extended 510 thread
1x Device servicing tool
1x Spare parts
1x Instructions

Manufacturer: Aspire
